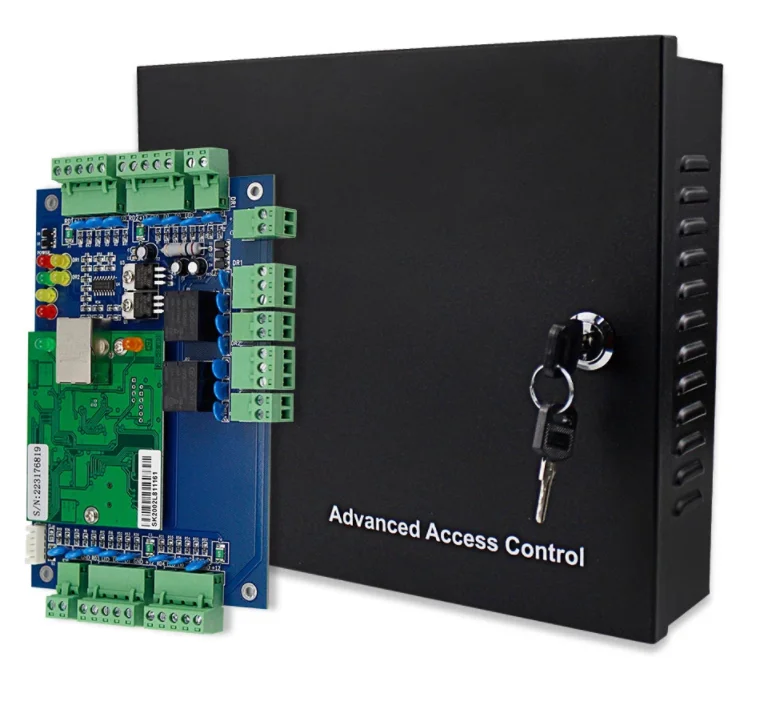

4 Doors Access Control System Core Control Components with 110V-240V Power Supply Box and TCP/IP Network Access Control Panel
4 Doors Access Control System Core Control Components with 110V-240V Power Supply Box and TCP/IP Network Access Control Panel
Regular price
$58.00 USD
Regular price
$0.00 USD
Sale price
$58.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Product Description
|
Item Number
|
TDM-AC04
|
|

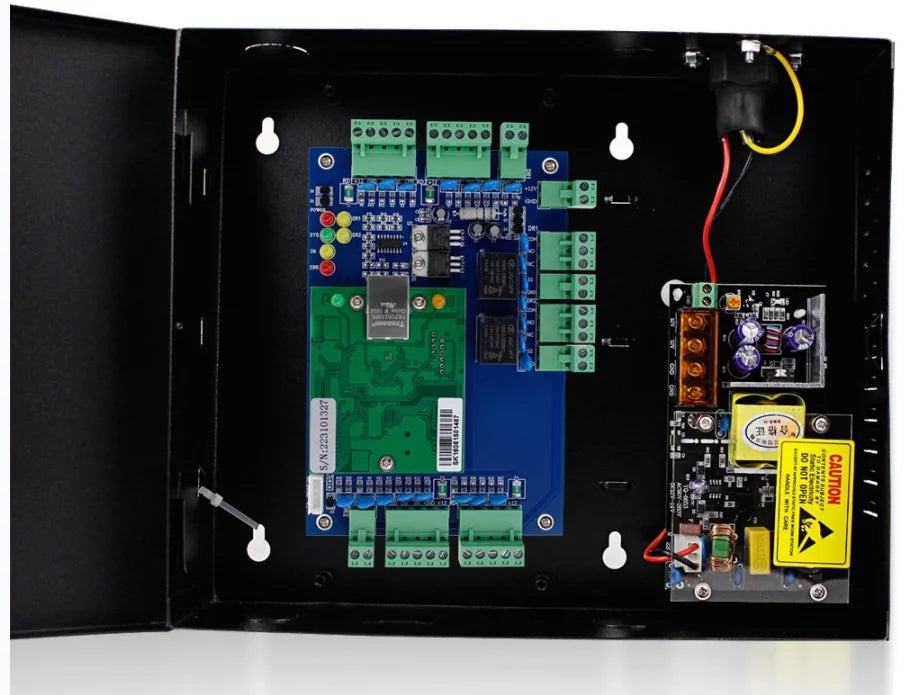

Power:
|
50~60 W
|
|
Power Input:
|
AC90V / 260V
|
|
Output:
|
DC 12V-14V, 5A
|
|
Automatic protection function, in the event of an unexpected situation such as a short circuit in the power supply,
|
Yes
|
|
The power supply will be temporarily disconnected or the fuse will be automatically secured.
|
Yes
|
|
Supports up to 2-4 card readers and 1 access control panel
|
Yes
|
|
Supports up to 4pcs electric mortise locks or 3pcs 280KG magnetic locks,or any other devices
|
Yes
|
|

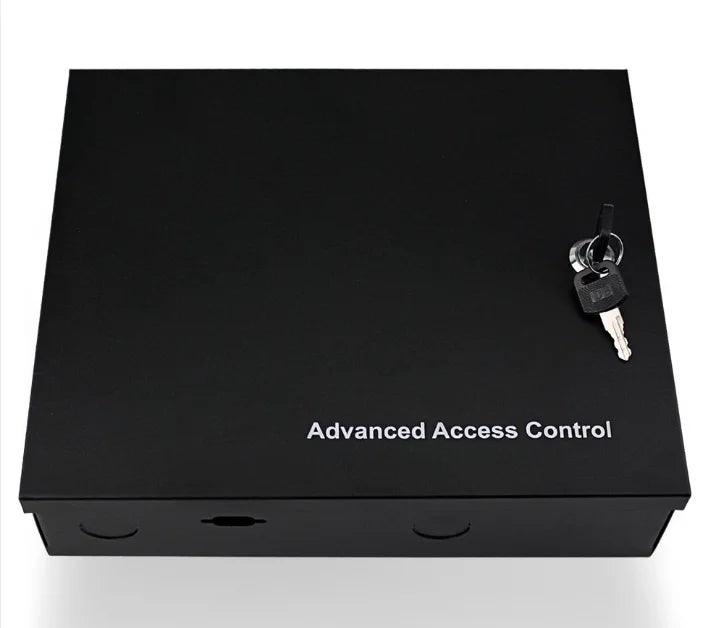

Size:
|
235x277x72mm
|
|
Weight:
|
1.68kg
|
-
Product performance description
-

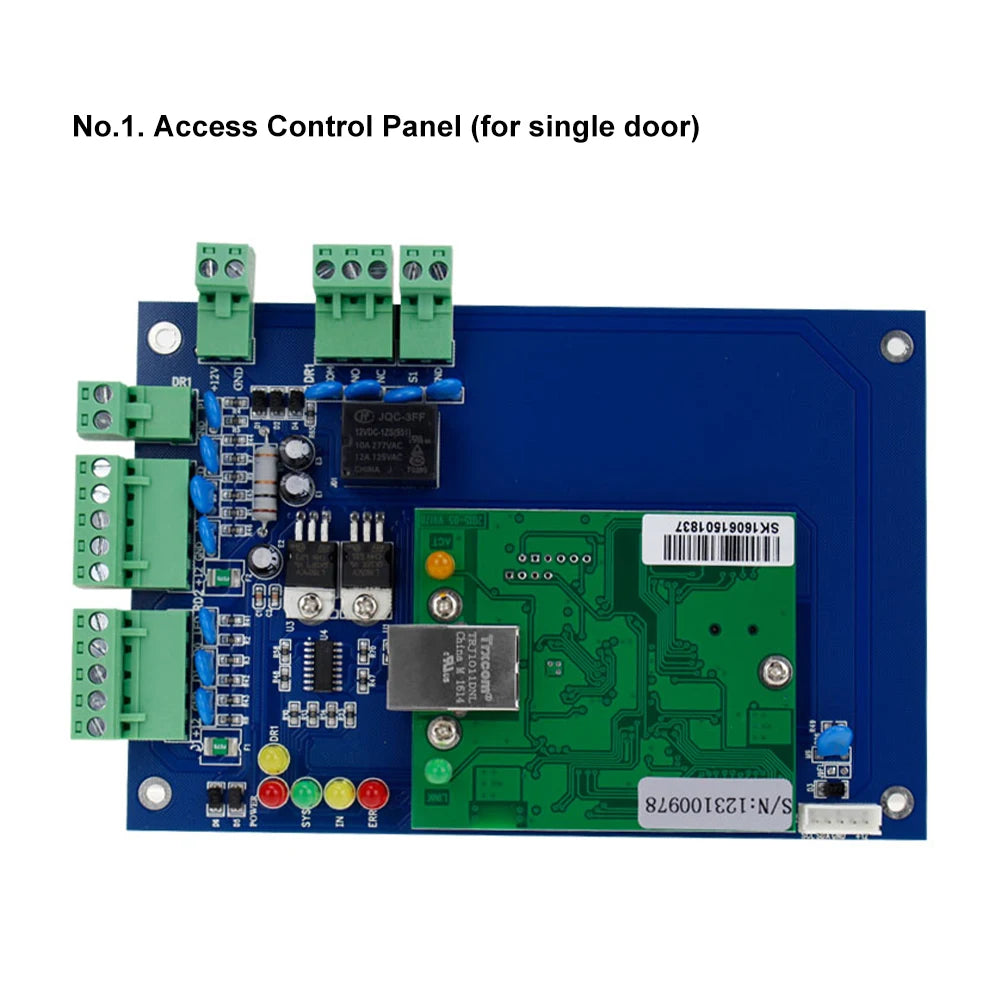

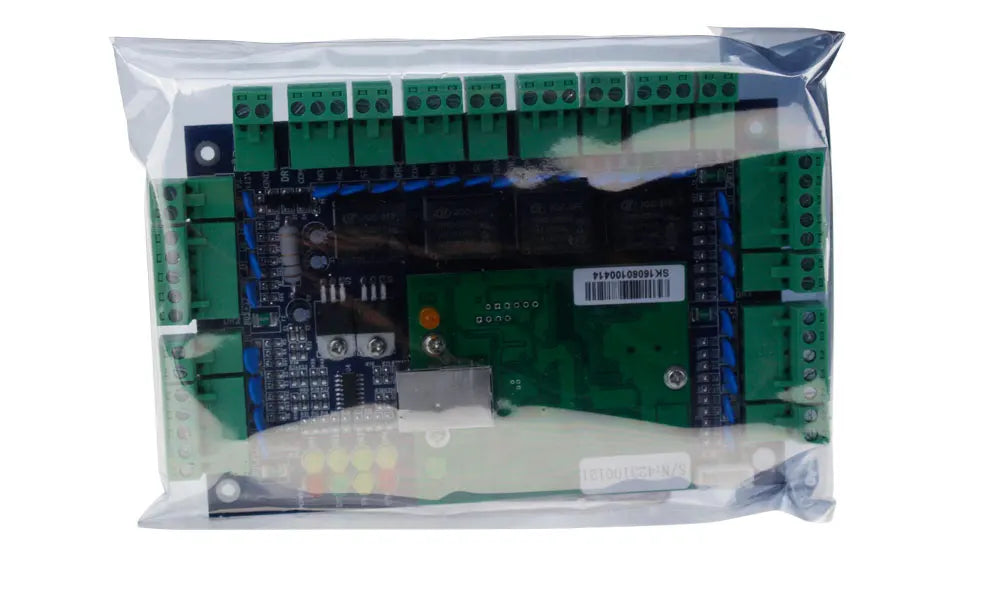

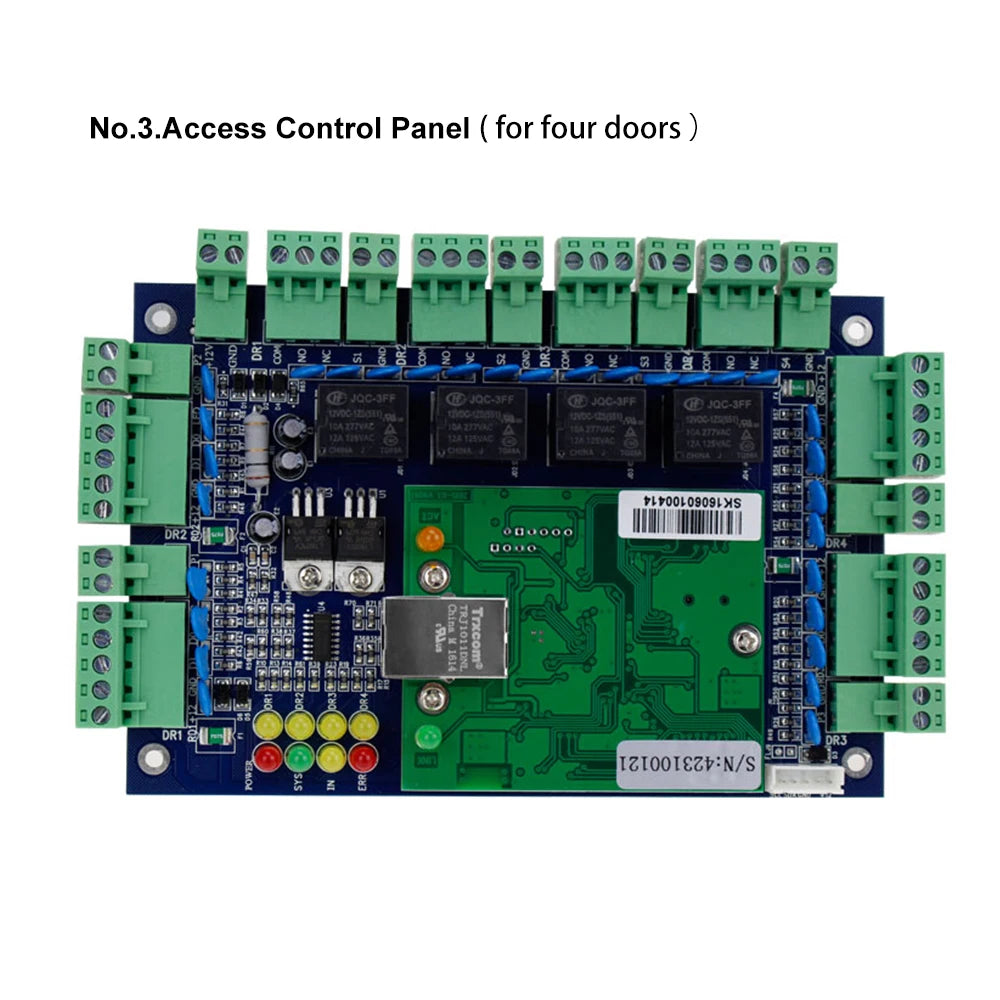

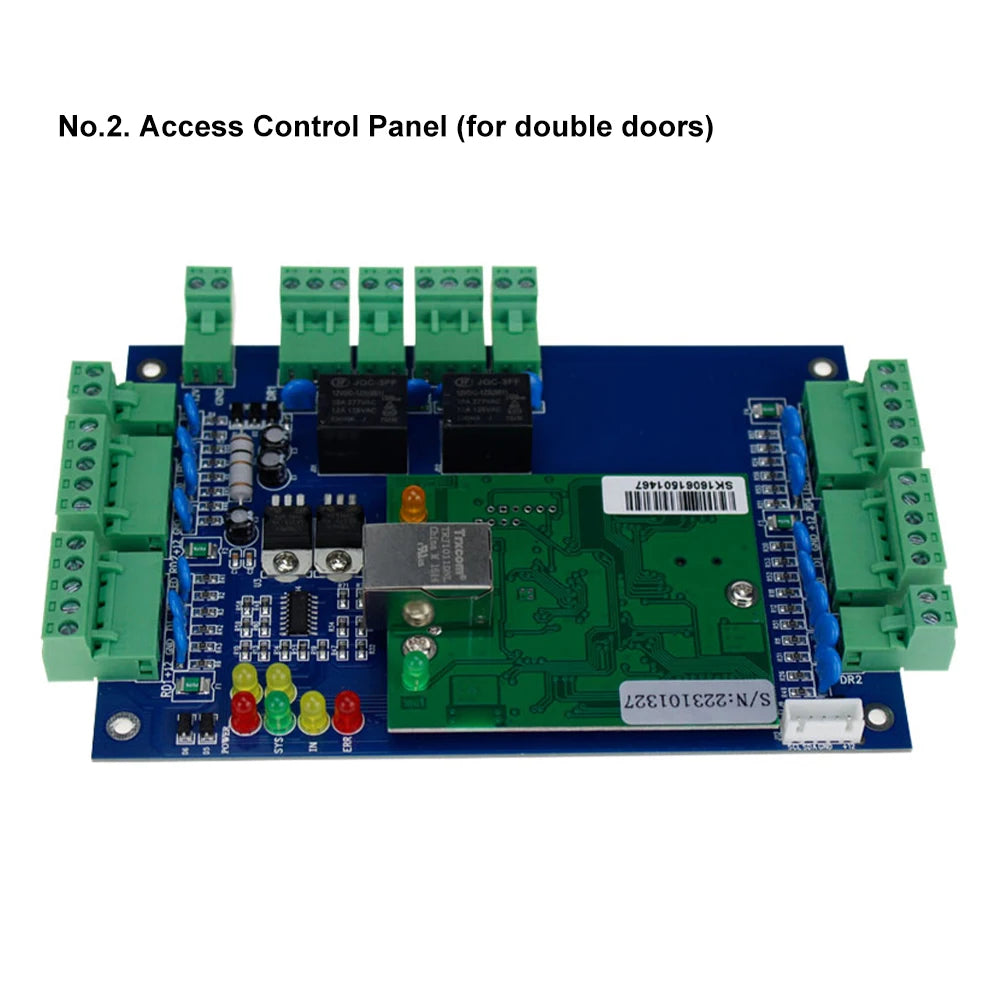

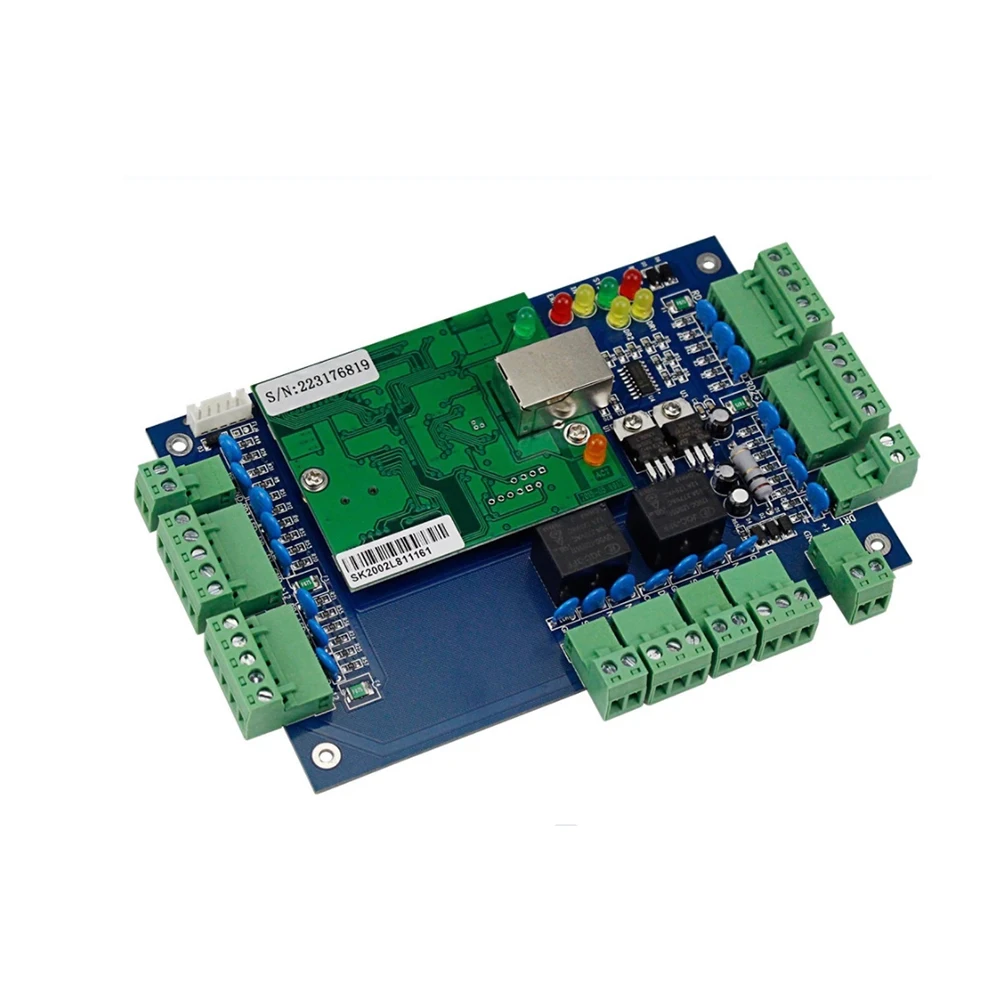

1.1 Product Specifications: Communication: TCP/IP Software Supportable Database: Access & SQL Number of door controls: 1 door/2doors/4 doors (Get in and out door by swiping card, or get in by swiping card and get out door by button) Number of readers: 2/ 4readers Door opening time extension: Setting: 1 ~ 600 seconds (adjustable) Number of controllers: Unlimited (Remark: N denotes qty of computer serial port or qty of 485hub port, support 256pcs ports) Number of users: 20,000 users Number of event buffers(offline): 100,000 event buffers Power input: DC 12V, 4 ~ 7A Power consumption of the PCB: Less than 100mA Software supportable database: Access & SQL Input format of the reader: Wiegand 26 bit (All card readers with compatible protocol like HID, EM, M1etc.) Max distance from reader to controller: 100m (default distance 80m) Alarm for long time door open, illegal entry, intimidate Fire and alarm linkage: If there is no connection to the expansion card, only has software interface alarm and control the computer speaker. When connected with expansion car Remote control module: Yes Anti-submarine back and anti-tail: Yes Multi-Card Open Door: Yes open long time at specific time: Yes Electronic Card: Yes Emergency Lock: Yes First card unlock: Yes Unlock based on internal and external validation: Yes.
-
Company Introduction
TDM is a professional lock and access control manufacturer that specializes in manufacturing various locks and access control devices including access controller,access control panel,smart lock,electromagnetic lock,electric bolt lock,rim lock,handle lock, luggage lock, cabinet lock,fire lock ,car lock and the accessories to the locks.Our products are widely used in many area such as office, apartment,resident house,government,school,fire door,car and so on.Our mission is to provide the customers with a completely solution of lock and access control.We can provide OEM and OEM service and customize the new products as the customers need.Our head company is located in Shenzhen,China and branch in zhongshan that covers land more than 8000 square meters,with more than 100 employees.We have a good management system in the line of ISO9001-2015 and our products branded TDM are all high quality with the certificates of CE,FCC,ROHS and so on.
Our Services & Strength
More than 10 years experience of manufacturing locks and access control system,can provide with complete solution of access control system and security system for door.
FAQ
Q1: Is your company a factory or a trading company?
A: TDM is a factory mainly manufacturing smart locks.
Q2: How can you make a difference from other suppliers?
A: We have enjoyed more than 10 years of rapid development together with our customers.
We know our customers’ need as well as the market’s developing trend.
We have the most professional producing and testing equipment in this field. Equipped with
a strong QC dept and R&D dept, each of our products' quality is under strict control standard.
Buy from us with 100% confidence.
Q3: How is your production ability?
A: We have 3 production lines, monthly production capacity is about 8,000 pieces.
Q4: What is your MOQ?
A: Our MOQ is 1 piece.
We are always offering our customers with the great support for their different need.
Q5: Could you help with my designed products?
A: Yes sure.
We are able to offer OEM/OEM service for our customers to gain the best solution for their markets.
Q6: What is your leading time?
A: Sample order will be ready for shipment within 3 days.
Bulk orders will be ready for shipment in about one week or two.
