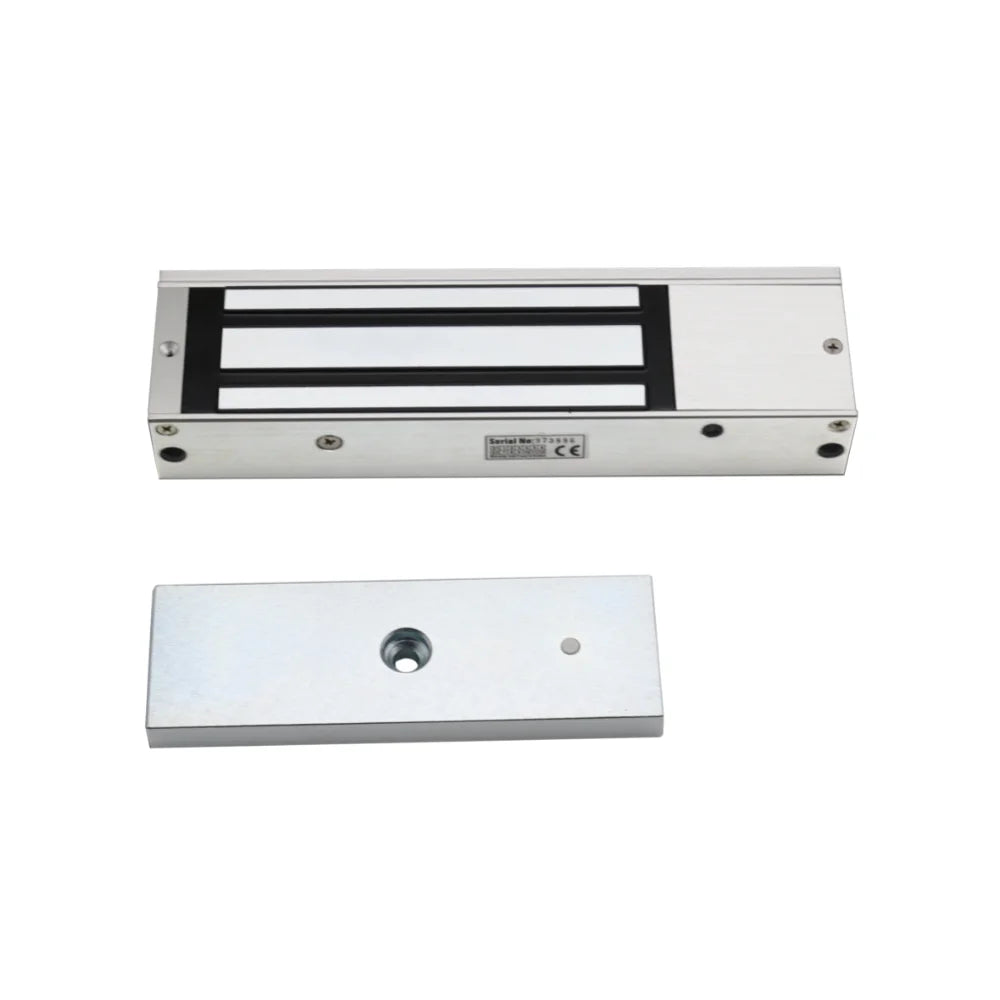

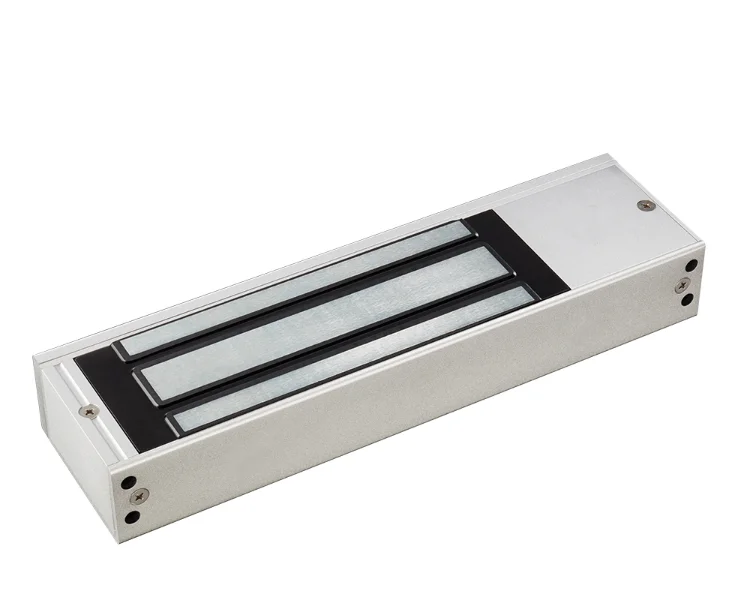

500KGS/1100 LBS Electric Magnetic Lock,Electromagnetic Door Lock Holding Force for Door Access Control System,Single Door 12V
500KGS/1100 LBS Electric Magnetic Lock,Electromagnetic Door Lock Holding Force for Door Access Control System,Single Door 12V
Regular price
$33.00 USD
Regular price
$0.00 USD
Sale price
$33.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Product Description
|
Item No.
|
TDM-S500
|
|
Products Description
|
750KGS Holding Forces Electrnomagnetic Lock single doors
|
|
Size
|
250Lx48.8Wx25H(mm)
|
|
Armature Plate Dimension
|
180Lx38.8Wx12H(mm)
|
|
Holding Force
|
500kg(1100Lbs)
|
|
Input Voltage
|
DC12V (Adjustable DC24V)
|
|
Current
|
12V/500mA or 24V/250mA
|
|

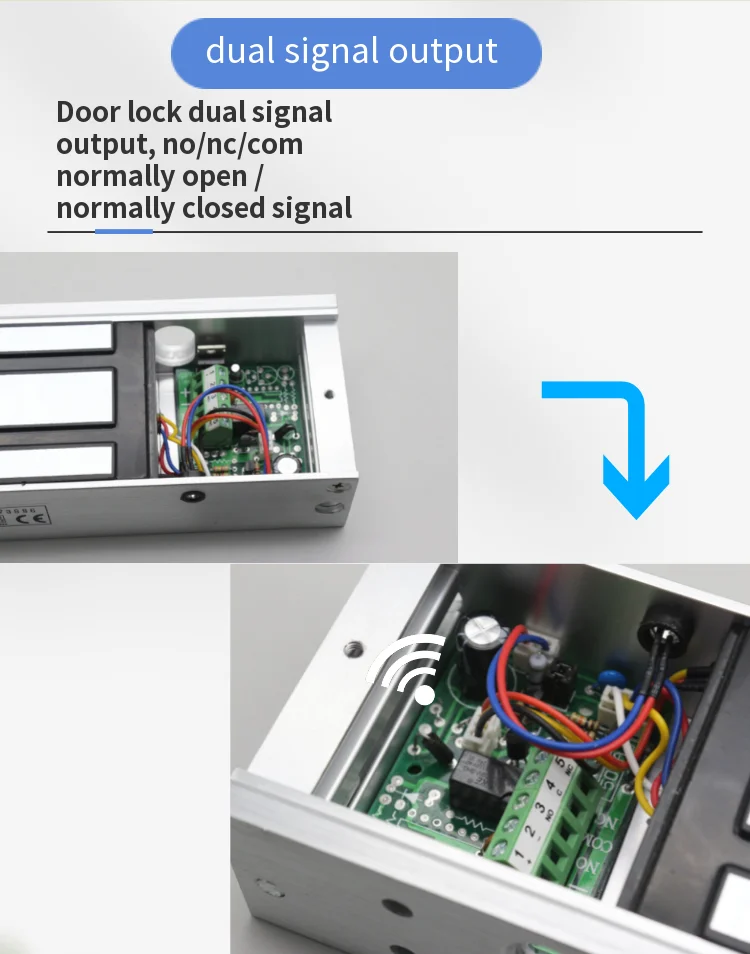

Door status signal output
|
NO,NC,COM
|
|
Suitable
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
Surface Temp
|
≤+20℃
|
|
Operating Temp
|
-10~+55℃(14-131F)
|
|
Humidity
|
0~90%(non-condensing)
|
|
Cover Finish
|
Anodized aluminum
|
|
Lock Finish
|
Zinc
|
|
Armature Plate Finish
|
Zinc Alloy
|
|
Weight
|
3.5KG
|
-

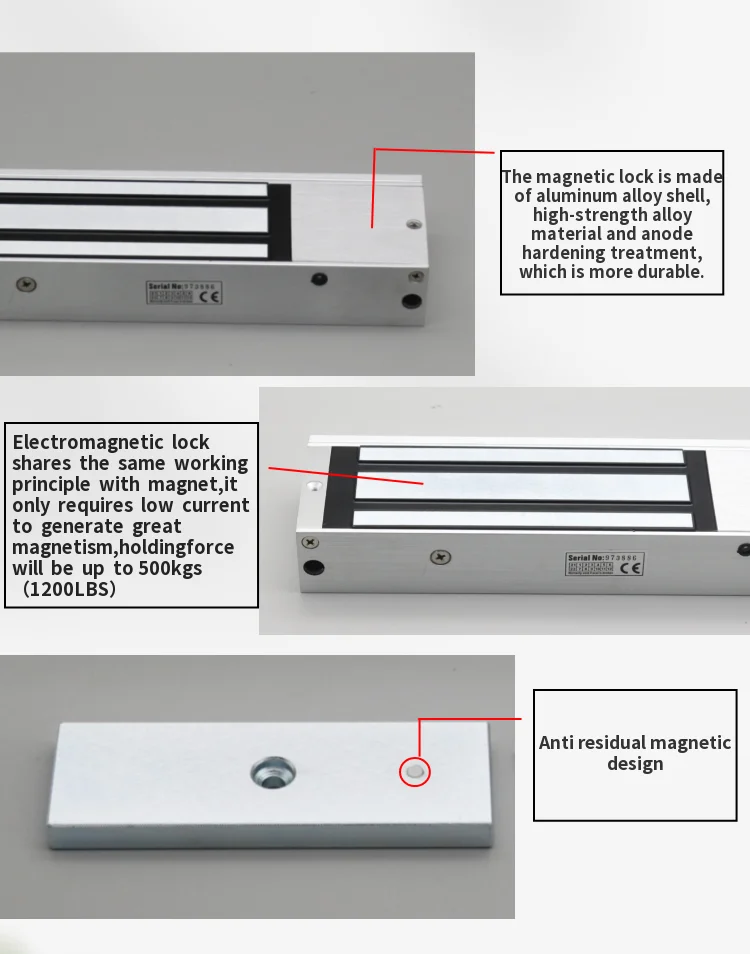

Product performance description
-

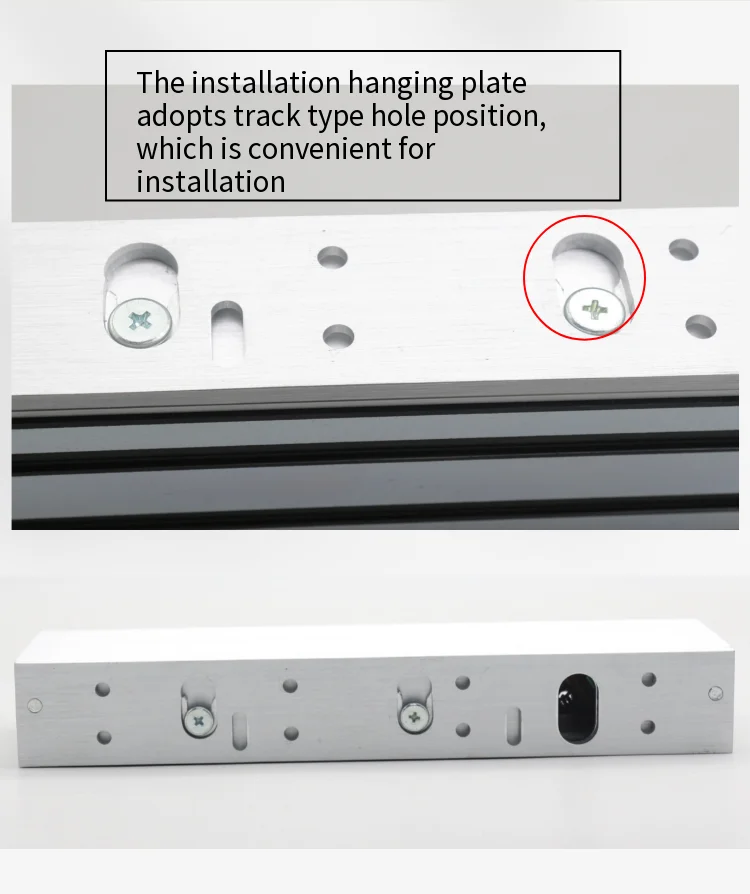

How to install each component of the magnetic lock Note: Please read this instruction carefully before installing the magnetic lock：
-
A. Handle with care. Damage to the traction iron block or the surface of the suction strip on the lock body will reduce the strength of the lock.
-
B. The lock body of the magnetic lock should be fastened on the door frame, and the traction iron block should be installed on the door. The accessories on the installation package can allow the traction iron block to tilt around its central axis to compensate for the error caused by the wear of the door or incorrect installation.
-
C.Auxiliary installation paper should be used when the door is normally closed.
-
D. Tighten the magnetic lock mounting screws。
